LSC3 Series

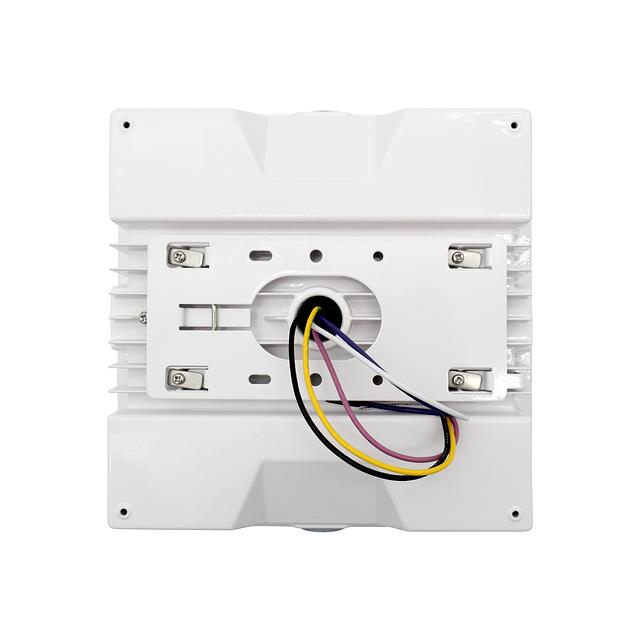

LSC3_Back.jpgLSC3 Series
LED Square Canopy
The LSC3 family of LED canopy fixtures combine high-performance LEDs, highly engineered optics to traditional designs to bring you the most advanced line of canopy fixtures on the market. The long LED life coupled with exceptional color rendering make this fixture attractive for new or retrofit projects. Multiple lumen packages mean there is an LSC that is just right for your lighting needs.
Resources
- Sturdy, weather-resistant bronze aluminum housing.
- Optional adjustable dusk-to-dawn photocell automatically turns light on at dusk and off at dawn for convenience and energy savings. The photocell can be disabled with one turn on its cover.
- Direct replacement of fluorescent long life, 60,000-hour LEDs at L80 reduce lift cycle maintenance costs.
Beam Angle
- 160
CCT
- 3000K
- 4000K
- 5000K
CRI
- 80
Color / Finish
- Bronze
- White
Dimensions
- L: 10 In. W: 10 In. H: 4.1 In.
Dimming Protocol
- 0-10 V
Dimming Range
- 10-100%
Efficacy
- 128
Lamp Life
- 50000
Lamp Source
- LED
Listings
- ETL
Lumens
- 7680
Materials
- Polycarbonate
Ratings & Compliance
- LM80
- RoHS
- TM21
- UL1598A
- Wet
Shape
- Square
Voltage
- 120-277 V
Warranty
- 5 yr
Watts
- 60
